Configure Incoming Replication

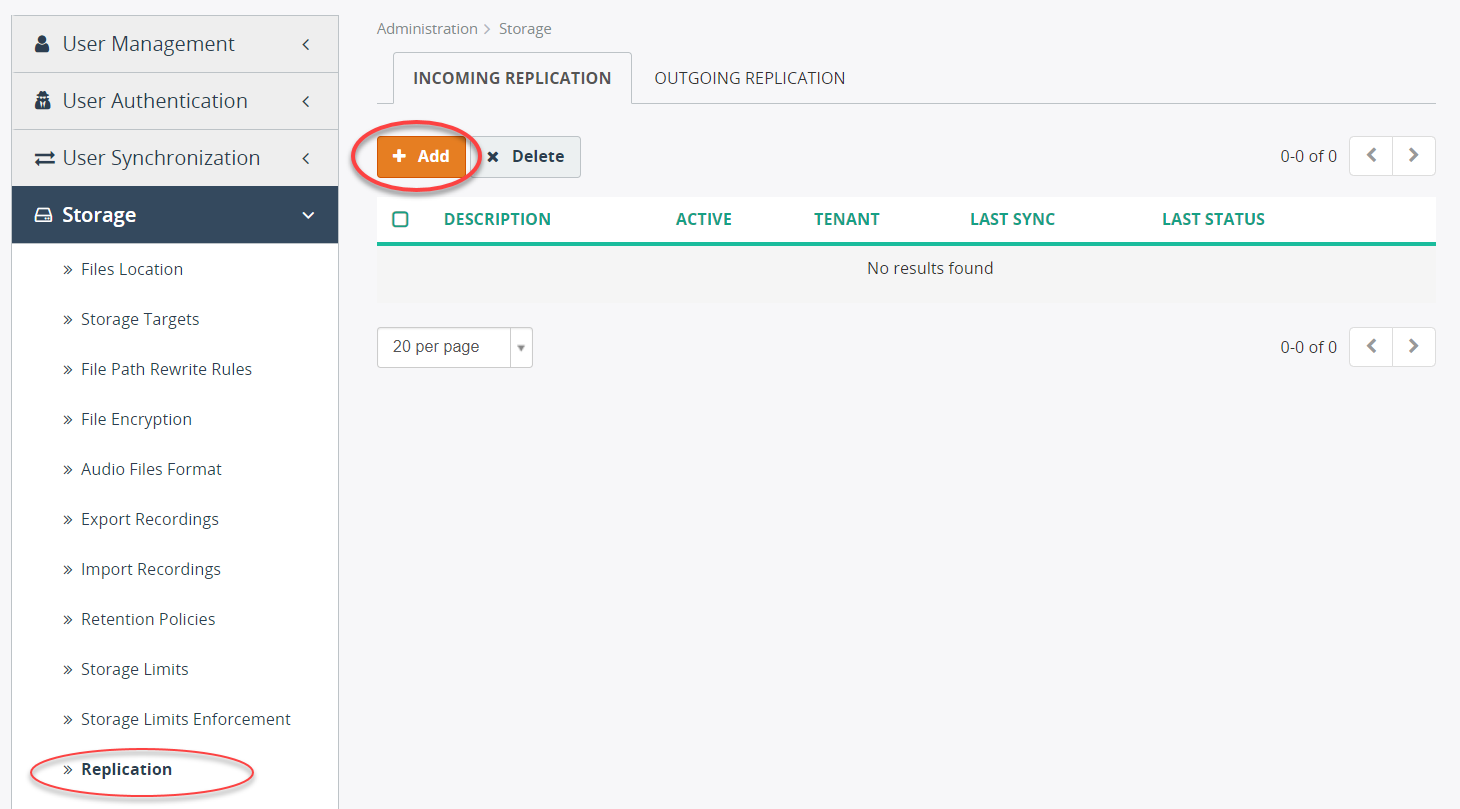

Navigate to Administration > Storage > Replication and under the Incoming Replication tab, click Add to create a new token.

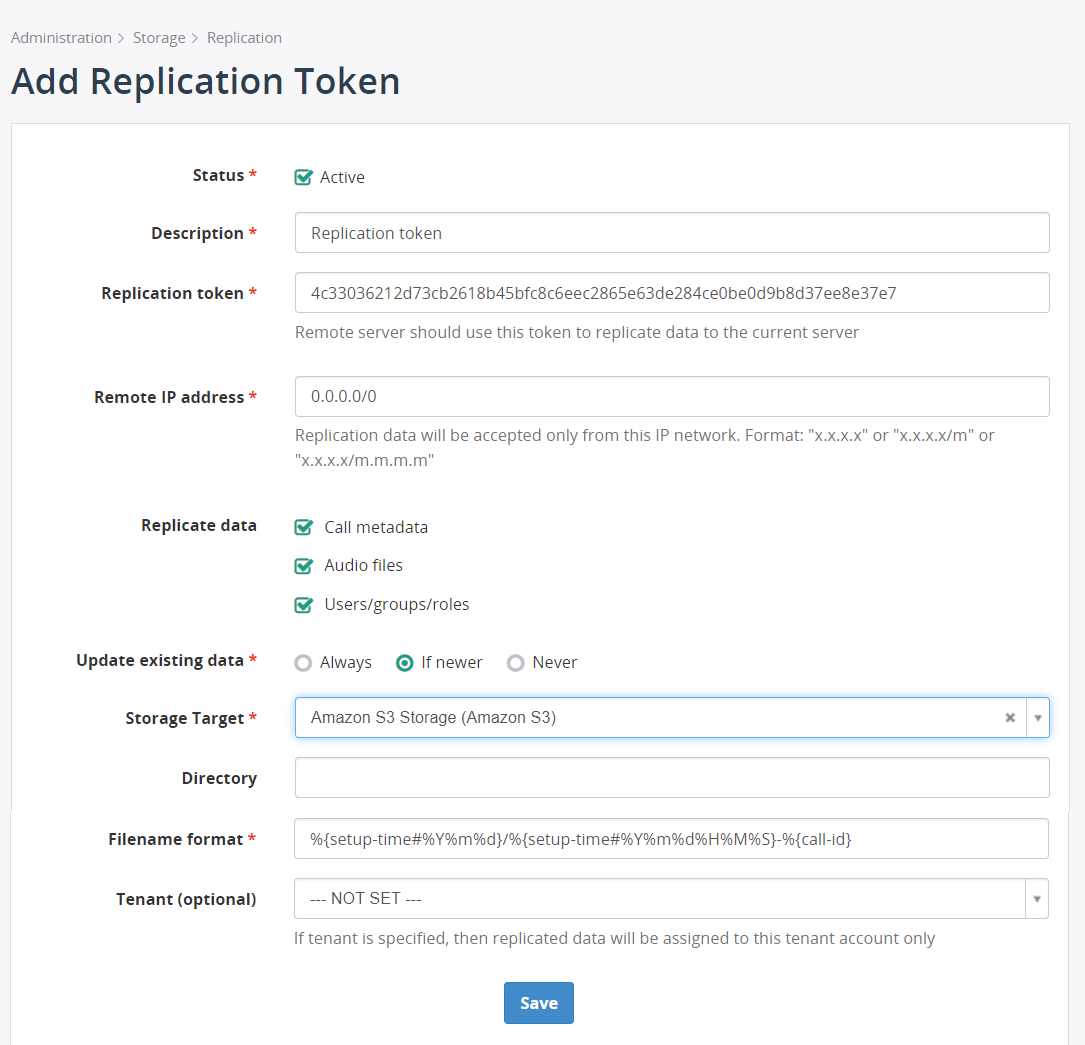

Fill out the following configuration parameters:

• Status. Select this check box to enable the token.
• Description. Provide the descriptive name for the token.
• Replication token. Replication token, auto-generated. Optionally, it can be modified.
• Remote IP address (recommended). The IP-address or IP network mask of the sender server. This parameter can be set to "0.0.0.0/0" to accept replication data from any IP-address.
• Replicate data. Data that is replicated.
• Update existing data. A conflict resolution strategy when the same record is updated on both servers.
• Storage Target. A location of the received data (audio files).
• Directory (optional). A sub-directory within the Storage Target path.
• Filename format. A format for filenames and, optionally, directories. The replication process can inject various call metadata attributes into file/directory names. For example, it can create directory for each day in format YYYYMMDD and then include caller-number and called-number into file name.
• Tenant (optional). When specified, the replicated data will be imported into the specified tenant account.

The same target server may receive data from multiple source servers. You will need to create a token for each source server.
