Configure Network Share (SMB) Storage Target

This page provides the instructions to configure a Network Share (SMB) Storage Target in MiaRec web application.

  1. Navigate in MiaRec web portal to Administration -> Storage -> Storage Targets and click Add.

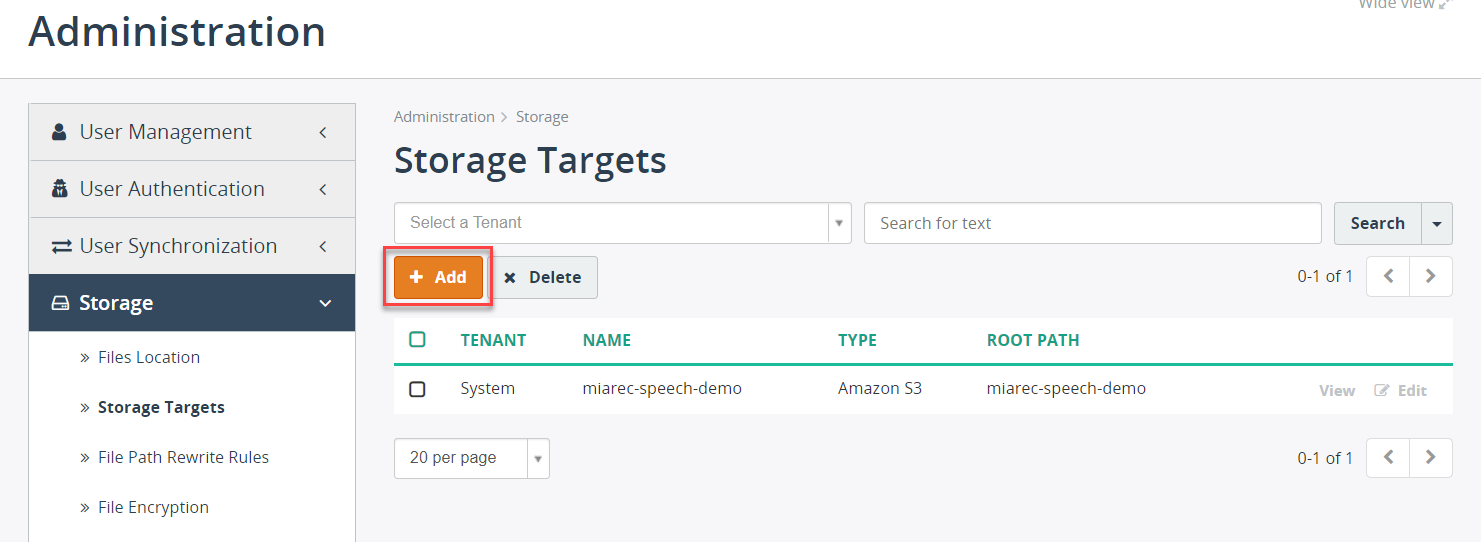

    SMB Storage Target

  2. In the Name field, provide a distinctive name for a newly created storage target.

  3. In the Tenant field, specify the tenant this storage target is associated with. Note, this field is available in the multi-tenant environment only.

  4. In the Type field, select Network Share (SMB).

  5. Under the Windows Network Share Settings section, provide the NETBIOS name (or the IP address) and the account credentials.

  6. In the Base path field, enter the base directory where the recordings will be stored.

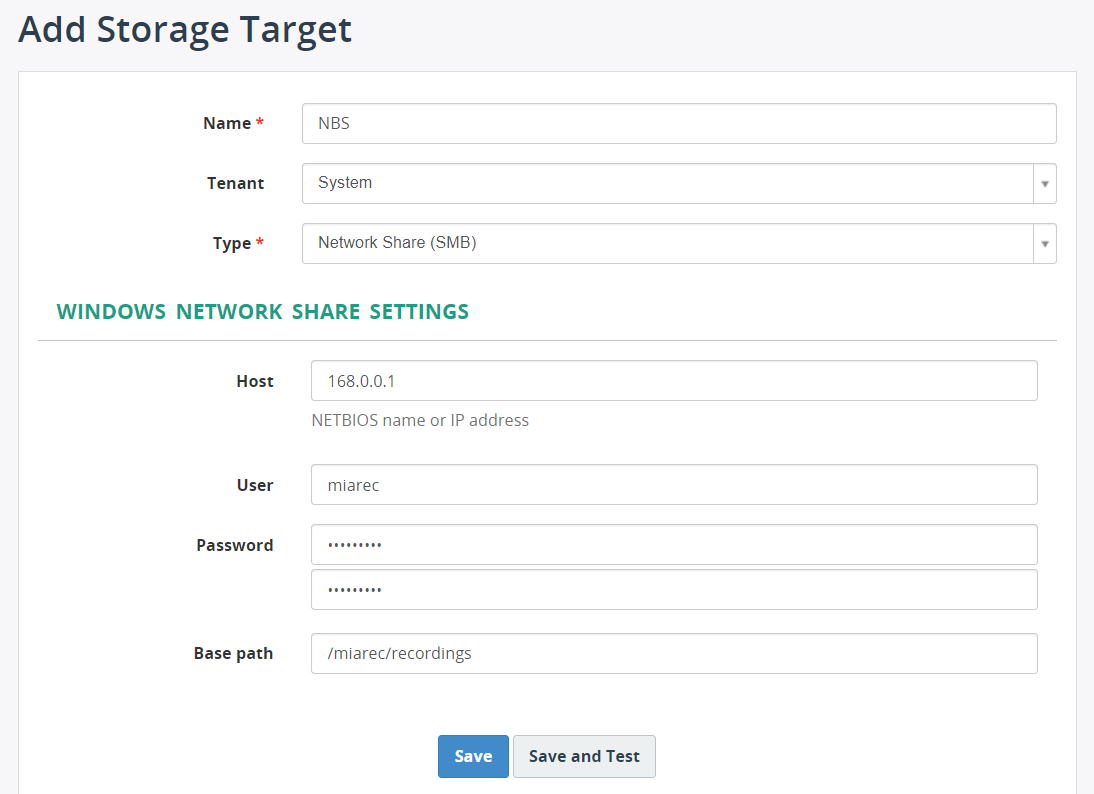

    SMB Storage Target Settings

  7. Click Save and Test. The system will try to establish the connection and will display the status.
