Phone Softkey Services

Soft keys are a feature of modern voice over ip phones. They provide a way to customize the phone’s user interface depending on the context as well as your your personal preferences.

The Phone Softkey Services page includes the settings that should be configured as part of Soft Key Integration.

Check the reference on available settings on this page.

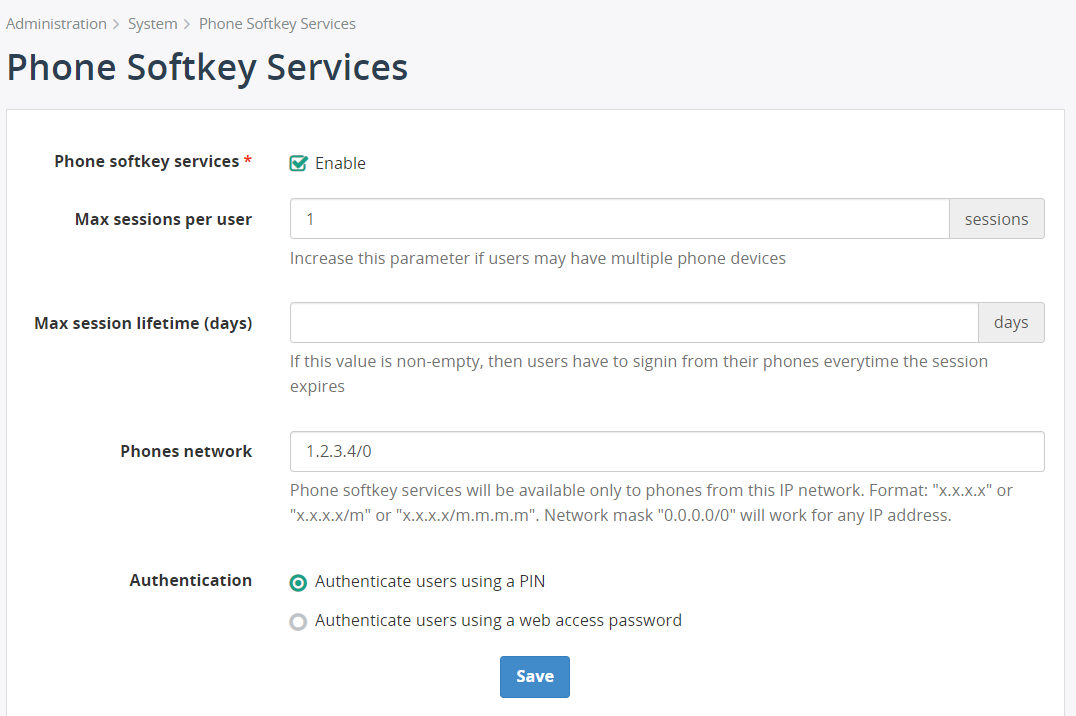

Phone Softkey Services

  • Phone softkey services - select this check box to enable the phone softkey integration.
  • Max sessions per user - specify the number of devices that can be used per user. Increase this parameter if users may have multiple phone devices.
  • Max session lifetime (days) - specify the number of days after which the session will expire. If this value is non-empty, then users have to signin from their phones everytime the session expires.
  • Phones network - Phone softkey services will be available only to the phones from this IP network. Format: "x.x.x.x" or "x.x.x.x/m" or "x.x.x.x/m.m.m.m". Network mask "0.0.0.0/0" will work for any IP address.
  • Authentication - select the authentication type for users. User can authenticate either via a PIN or web access password. If PIN authentication type is selected, users will need to provide their Login and PIN when they access the MiaRec services the first time from their phone.The Login and PIN and password should be configured on a user profile page.

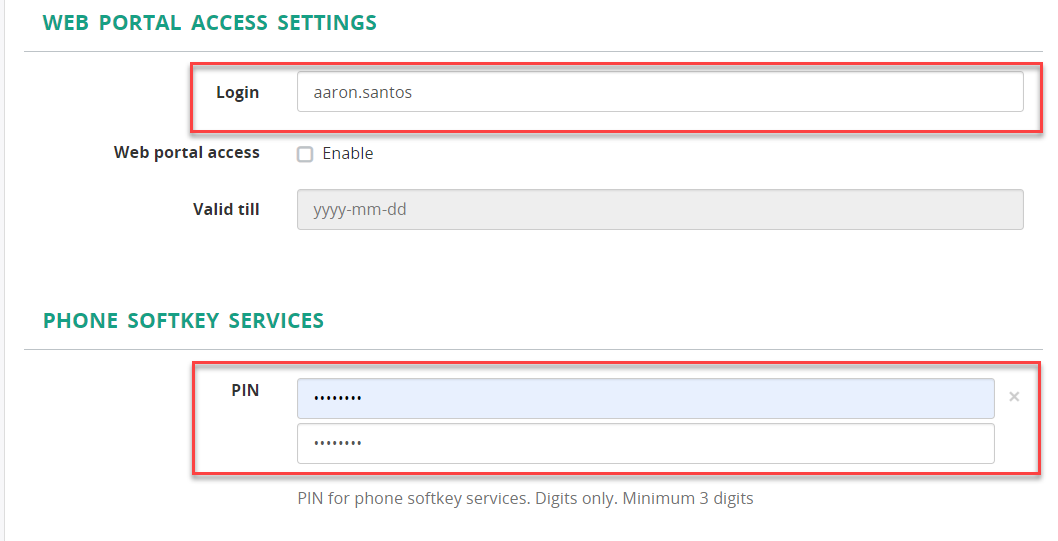

Web Portal Access Settings

Make sure to save your changes.
